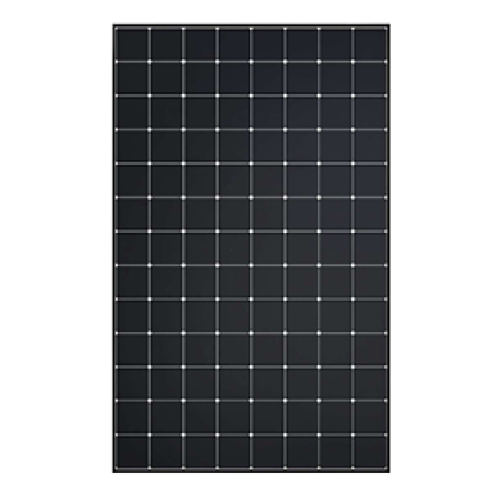

SunPower Maxeon SPR-MAX5-400-E3

Performance

Efficiency 21.4%

The SunPower/ Maxeon 3 BLK-R 405W with shuttered cell P-type silicon modules' efficiency ratings is 21.4% putting this panel on the highest end of average solar panel efficiency. In fact, according to Sunpower’s own spec sheets, when comparing efficiency the more affordable Maxeon 3 series performs as well or better than the IBC Maxeon 5 series.

Power Tolerance +5/0%

Power tolerance refers to the amount of electricity it will produce either above or below its rated power capacity at Standard Test Conditions (STC). The smaller the power tolerance deviation or range, the more accurate the rated power capacity is.

MAXEON SPR MAX3 400W modules have a power tolerance of -0/+5%.

The Max3 panels will, at the very minimum, operate at their rated capacity. However, these panels have exceeded, by as much as 5%, their rated capacity.

For example this panel is rated at 400 W and will operate anywhere from 400 W to 420 W (or 5% higher than 400) under STC.

With a -0% tolerance rating, this panel operates at, or above, 400 W.

In a side-by-side comparison of power tolerance, the Maxeon3 panel performed as well as the more expensive Maxeon 5 panel.

Temperature CoefficientPMax: -0.27

Solar panels perform best at 77°F (25°C). In Texas, obviously, roofs see temperatures far in excess of 77°F for most of the year. A solar panel’s temperature coefficient is a measurement indicating how well a specific model of solar panel will perform outside of ideal operating conditions.

The panel’s temperature coefficient along with the temperature of the panel allows you to predict your panel’s performance during the dog days of summer.

Temperature coefficients are calculated in Celsius.

With each degree above 25° C /77° F, a given solar panel’s electric output will be diminished by its temperature coefficient.

Using the above methodology, the MAXEON SPR MAX3 400W panel has a temperature coefficient of -0.27%/°C. Hence, when this panel’s temperature increases from 25°C to 26°C (77° F to 79° F) expect a 0.27% reduction in potential electric output.

When it's July in Texas and temperatures have climbed to 95° F/35° C, expect electric output to decrease by 2.7%. During the hottest hours of summer, when the mercury climbs into the triple digits - 113° F/ 45° C - the MAXEON SPR MAX3 400W will decrease approximately 5.2%.

With respect to Temperature Coefficient, in hot weather the SPR MAX3 400W performs better than the more expensive N-type, MAXEON SPR MAX5 400 E3 AC.

Product Warranty 25 year, Linear

Output Decline

• Year 1     2.0%
• Years 2 to 25    0.25%
• Output at End of Warranty Term 92.%
• Materials Warranty Term 25 years
