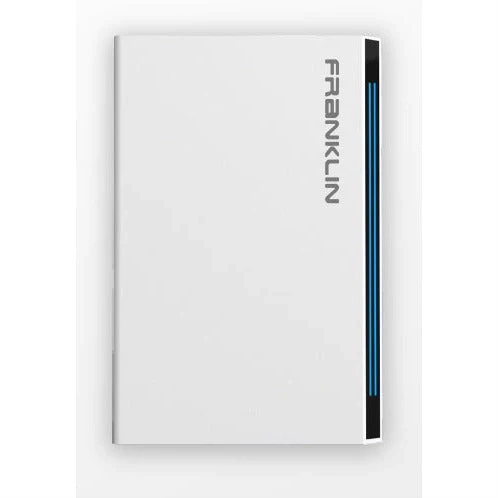

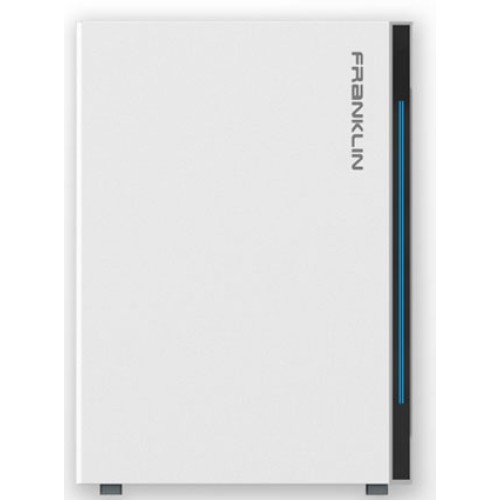

Franklin aPower X - 13.6 kWh Battery, Model Number: aPower X
The FranklinWH battery has a roundtrip efficiency of 85 percent; this means that for every 10 kilowatt-hours (kWh) of electricity you put into the battery, you’ll receive 8.5 kWh of output. In most cases, homes with an aPower will charge and discharge their battery every day. So, how long do FranklinWH batteries last?
Franklin Home Power pro was founded in 2019 and provides residential energy storage solutions. Based in San Francisco, California, Franklin Home Power's flagship product is the Franklin Home Power System, which is a battery storage system that can provide whole-home backup power during outages. .
Franklin released its residential line of aPower X batteries in 2021. These batteries use a very safe Lithium Iron Phosphate chemistry.
Power Output
Continuous power is a measurement, expressed in kW, of a battery's potential to release a sustained energy for a given period. Peak power is a measurement, expressed in kW, of a potential maximum power output in short bursts.
The Franklin aPower X provides 10 kW of peak power and 5kW of continuous power, well within the range of solar industry standards.
Round-Trip Efficiency
The Franklin aPower X has a roundtrip efficiency rating of 89%.
In order for a battery to function, a small amount of electric power is required for its operation. The total amount of charge that comes out of a battery subtracted from the amount of charge that went into the battery is expressed as a percentage ('%'). This is called Round-trip Efficiency.
The Franklin Power X has a rating of 89% round-trip efficiency, 9% above average.
The Franklin aPower X Dimensions are 31.5” x 21.7” x 6.3”
Warranty
Franklin backs the aPowerX with a 12 year warranty!
The Franklin aPower X 13.6 kWh battery has a 12-year warranty. The company estimates that the battery will retain at least 70% of its capacity or 43 MWh of throughput by the end of the warranty. This means that the battery could be completely drained and recharged 3,160 times before the minimum throughput warranty is reached.
Franklin aPower X
| Manufacturer | Franklin aPower X |
| Model | aPower X |
| Capacity | 13.6 kW |
| Chemistry | Lithium iron phosphate |
| Depth of Discharge | 100% |
| Round Trip Efficiency | 89% |
| Dimensions | 31.5” x 21.7” x 6.3” |
| Weight | 408 lbs. |
| Warranty | 12-year warranty, or Aggregate Throughput |
- Great warranty, large capacity, new to the market.
- These FranklinWH batteries are scalable, meaning additional batteries can be added to meet the most demanding power needs.
- These batteries can be used in both off grid or grid back up capacities
- Franklin aPower X -- 13.6 kWh Battery, Model Number: aPower X
Notes:
| Solar Batteries Configuration | |
|---|---|
| Dimensions LxWxH | 31.5” x 21.7” x 6.3” |
| Manufacturer | Franklin aPower X |
| Warranty | 12 years |
| Weight | 408 lbs. |
