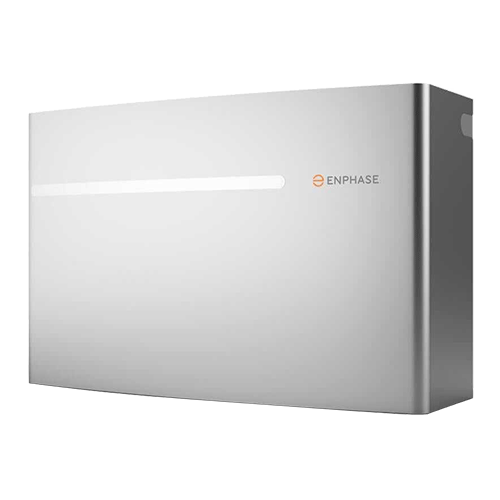

Enphase IQ 10 -- Model Number: ENCHARGE-10-1P-NA
Enphase IQ Battery 10 The Enphase IQ Battery 10 all-in-one AC-coupled storage system is reliable, smart, simple, and safe. It is comprised of three base IQ Battery 3 units, has a total usable energy capacity of 10.08 kWh and twelve embedded Grid-forming Microinverters with 3.84 kW power rating.
Enphase Energy released its residential line of IQ solar batteries in 2019. These batteries use a very safe Lithium Iron Phosphate chemistry and the IQ10 model features a Total Capacity of 10.5kW and a Usable Capacity 10.08kW.
The IQ10 can operate continuously at 3.84kW, with short bursts of peak power at 5.7kW.
The IQ10 has a roundtrip efficiency rating of 86% with 3% degradation.
Enphase Energy backs the IQ10 with a 10 year or 4000 through cycle warranty, whichever comes first. Enphase also guarantees no more than 3% degradation rate with at least 70% of capacity at end or warranty term.
The Enphase IQ10 Battery Dimensions are 664.0 mm L, 1070.0 mm W, 319.0 mm D.
These Enphase batteries are scalable, meaning additional batteries can be added to meet the most demanding power needs. These batteries can be used in both off grid or grid back up capacities.
System Compatibility
The Enphase AC Battery line is only compatible with Enphase solar inverters, including the Enphase IQ8.
Solar Battery Metrics
| Manufacturer Enphase | Enphase |
| Model | IQ10 |
| Capacity | 10.5KW |
| Chemistry | Lithium Iron Phosphate or LFP |
| Depth of Discharge | 98% |
| Round Trip Efficiency | 89% |
| Monitoring | Enphase App |
| Cooling | Passive Cooling |
| Dimensions | 1070 x 664 x 319 mm |
| Weight | 341 lbs |
| Warranty | 10 years or 4000 full discharge cycles |
- PRO-Compatible with existing PV systems
- PRO-Compatible with both gas-powered or solar generator
- PRO-No single point of failure-multiple microinverters with in battery
- PRO-Two convenient battery sizes for easy customization
- PRO-Five-year warranty extension as optional upgrade
- PRO-Seamlessly integrates with Enphase inverters
- CON-Lower cycle clause compared to other batteries review
Notes:
| Solar Inverter Configuration | |
|---|---|
| Compatibility | Compatible with grid-tied PV systems. Compatible with M215/M250 and IQ Series Microinverters, IQ System Controller, and IQ Gateway for backup operation. |
| Solar Batteries Configuration | |
| Cooling | Passive Cooling |
| Dimensions LxWxH | 1070 x 664 x 319 mm |
| Manufacturer | Enphase |
| Warranty | 10 years or 4000 full discharge cycles |
| Weight | 341 lbs |
