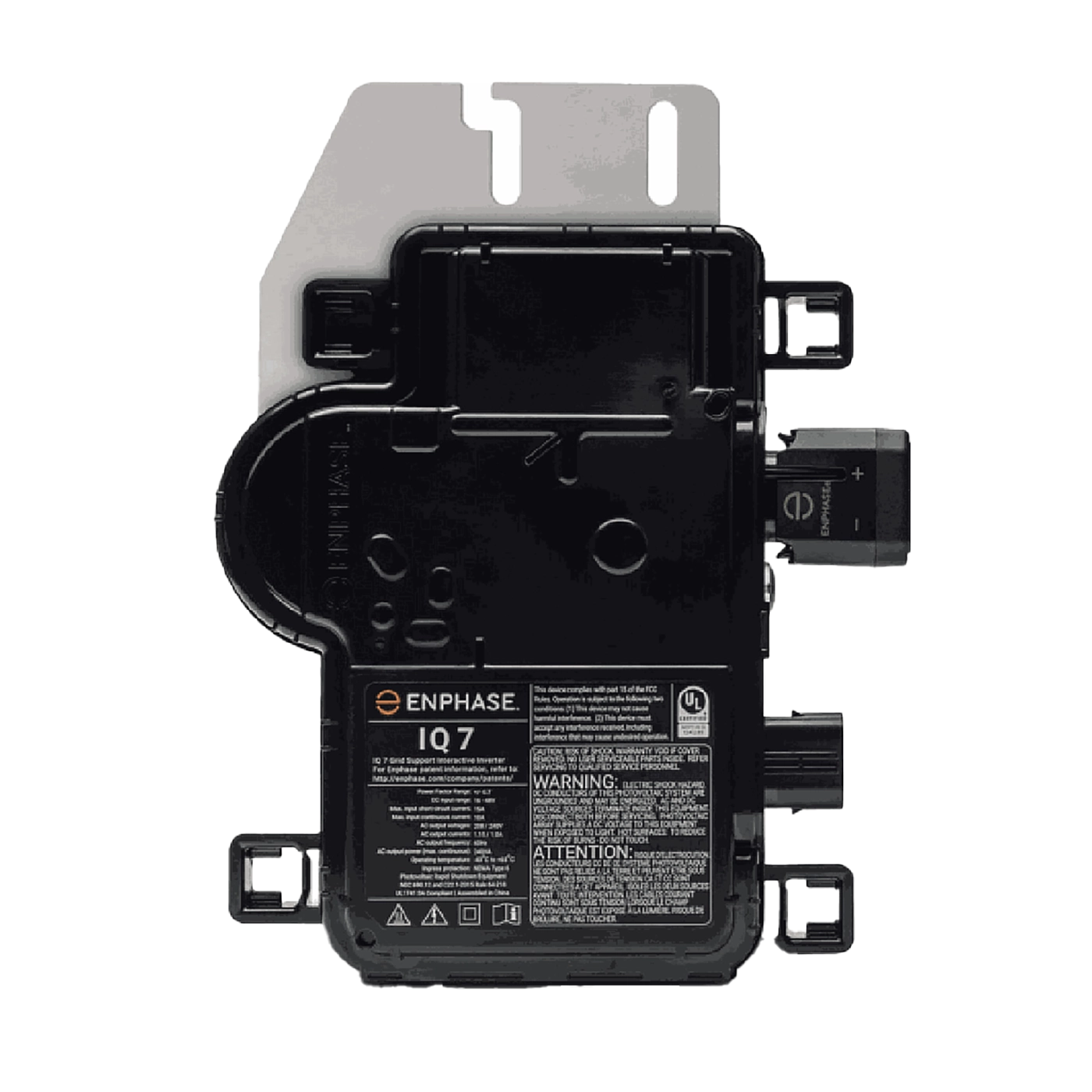

Enphase IQ7 Series

Brand: Enphase
Product Code: 72-2-US-240 Microinverter

Add to Compare

Download Spec PDF

The high-powered smart grid-ready Enphase IQ 7 Micro™ and Enphase IQ 7+ Micro™ dramatically simplify the installation process while achieving the highest system efficiency. Part of the Enphase IQ System, the IQ 7 and IQ 7+ Microinverters integrate with the Enphase IQ Envoy™, Enphase IQ Battery™, and the Enphase Enlighten™ monitoring and analysis software. IQ Series Microinverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty of up to 25 years.

Introduction

The high-powered smart grid-ready Enphase IQ7 and IQ7+ Micro-inverters integrate with the Enphase IQ Envoy™, Enphase IQ Battery, and the Enphase Enlighten™ monitoring and analysis software.

IQ Series Micro-inverters extend the reliability standards set forth by previous generations and undergo over a million hours of power-on testing, enabling Enphase to provide an industry-leading warranty for up to 25 years.

Go Solar Now

    SPECIFICATIONS :

  • Voltage
    • Minimum : 22 VDC
    • Maximum : 60 VDC
    • * The wider the range of voltages, the better an inverter can perform across a variety of solar output conditions.
  • Nighttime Power Consumption : 0.06W
  • Cooling : Natural Convection - No fans
  • Weight : 2.38 lb.
  • Compatibility : 60-cell/120 half-cell PV modules only
  • Enclosure : NEMA 6 - Class II double-insulated, corrosion resistant polymeric
  • Certifications : CA Rule 21 (UL 1741-SA), UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B, CAN/CSA-C22.2 NO. 107.1-01 This product is UL Listed as PV Rapid Shut Down Equipment and conforms with NEC 2014, NEC 2017, and NEC 2020 section 690.12 and C22.1-2018 Rule 64-218 Rapid Shutdown of PV Systems, for AC and DC conductors, when installed according to manufacturer’s instructions.

Compare IQ7 to IQ8 Go Solar Your Way!

  • Series : IQ7
  • Model : 72-2-US-240
  • Type : Microinverter / panel-level DC-AC conversion
  • Efficiency Rating : 97.6%
  • Warranty : 25 Years
  • Rated AC Power Output : 250 W
  • Output Voltage : 240 VAC
Solar Inverter Configuration
Efficiency Rating 97.6%
Solar panel compatibility 60/72 cell
Voltage Minimum : 22 VDC, Maximum : 60 VDC
Solar Batteries Configuration
Dimensions LxWxH 10" x 7" x 1.2"
Manufacturer Enphase Energy
Type Grid-Tie Inverters, Micro inverter, RV Inverters
Watts 366W
